Compact RC Zamor tank

Creative Content Lego Creations
1

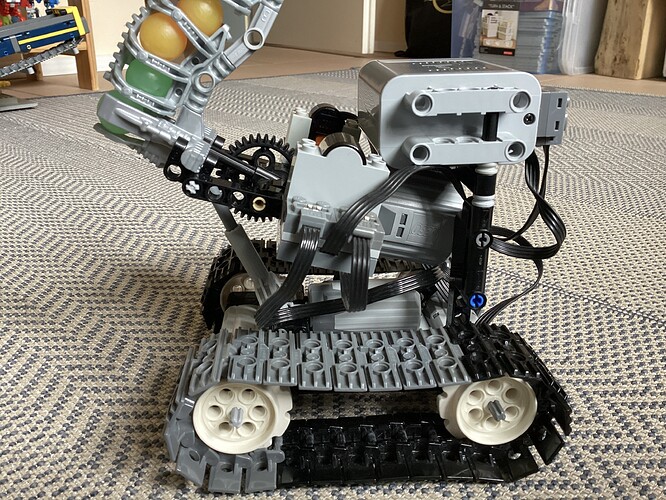

This is a compact RC vehicle with a motorized Zamor launcher.

IMG_5026
IMG_50263264×2448 2.37 MB

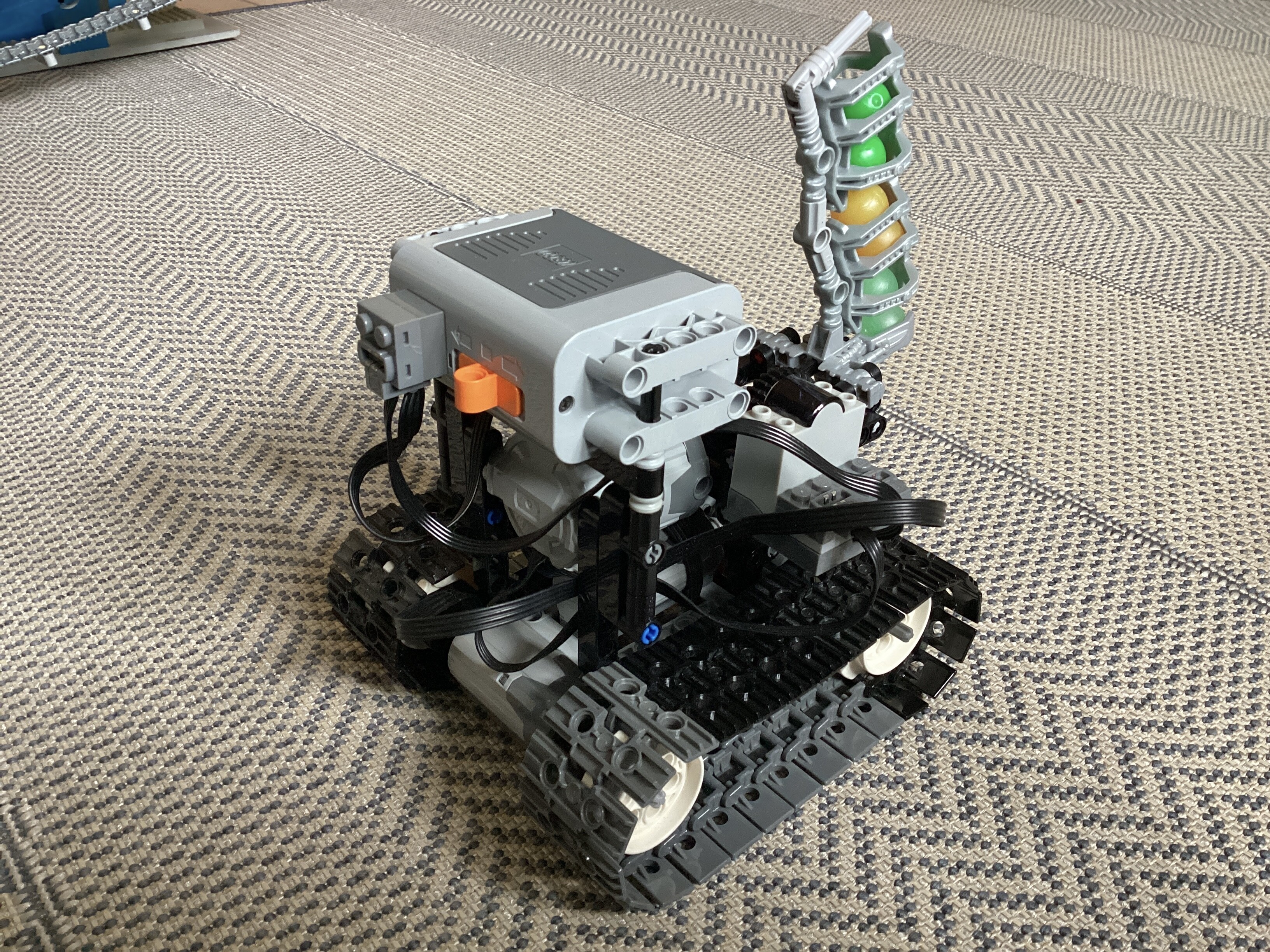

It uses two M motors for drive (one on each track), one M motor to raise and lower the launcher and an XL motor that powers the launcher. The launching mechanism was basically copied from the EV3 Everstorm model.

IMG_5027
IMG_50273264×2448 2.78 MB

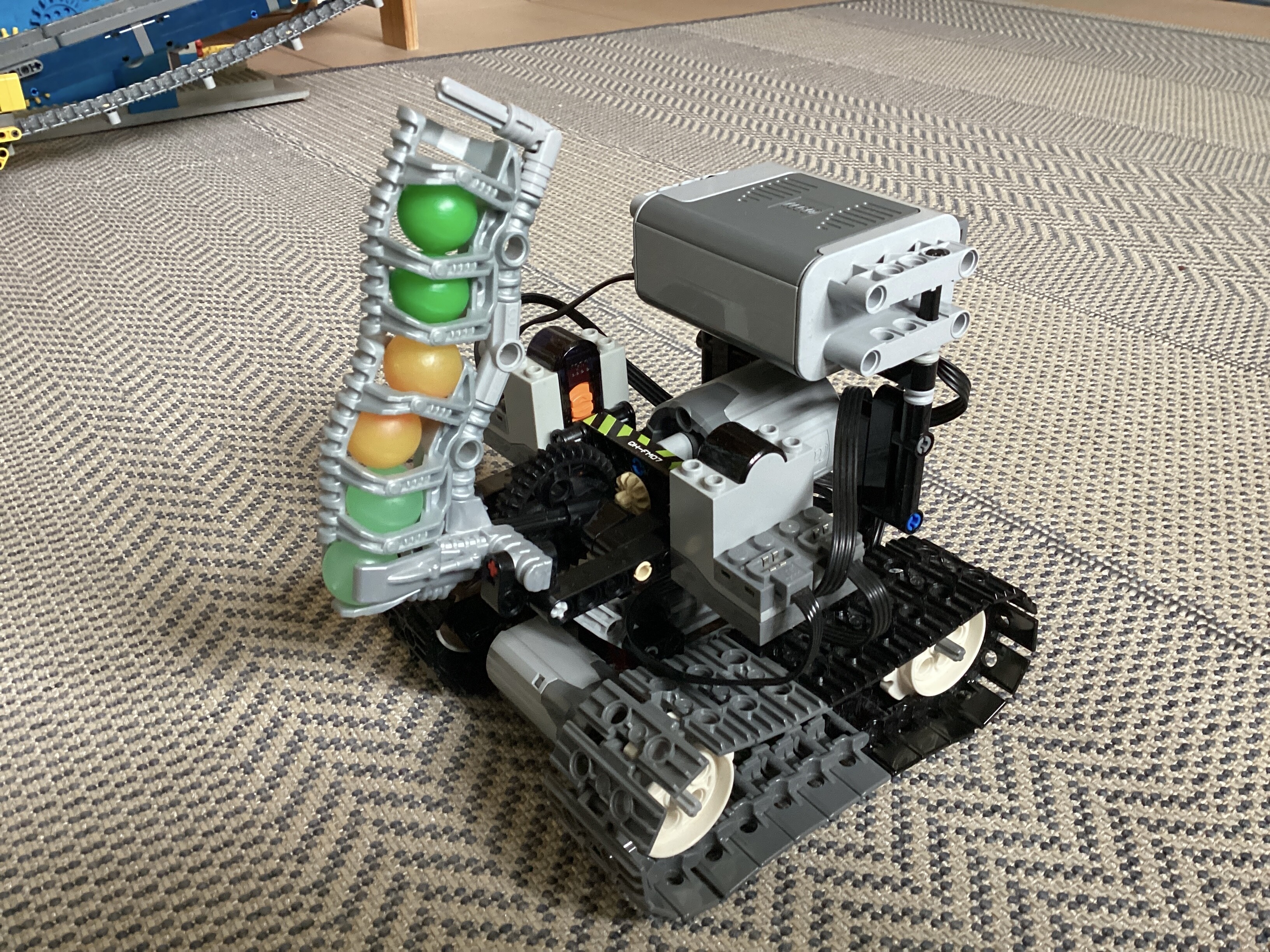

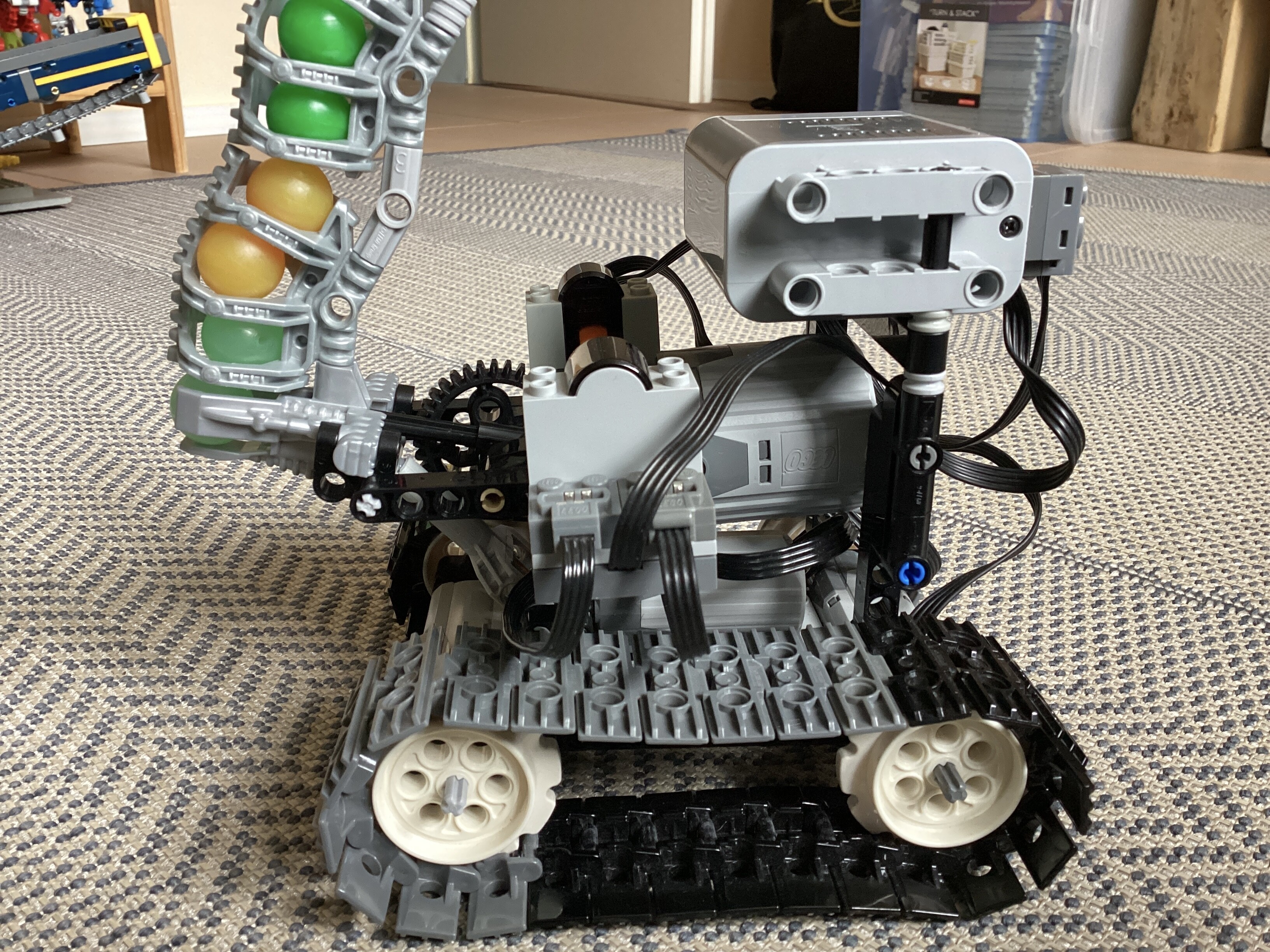

The height adjustment using a mini linear actuator:

IMG_5029
IMG_50293264×2448 2.18 MB

IMG_5030
IMG_50303264×2448 2.15 MB

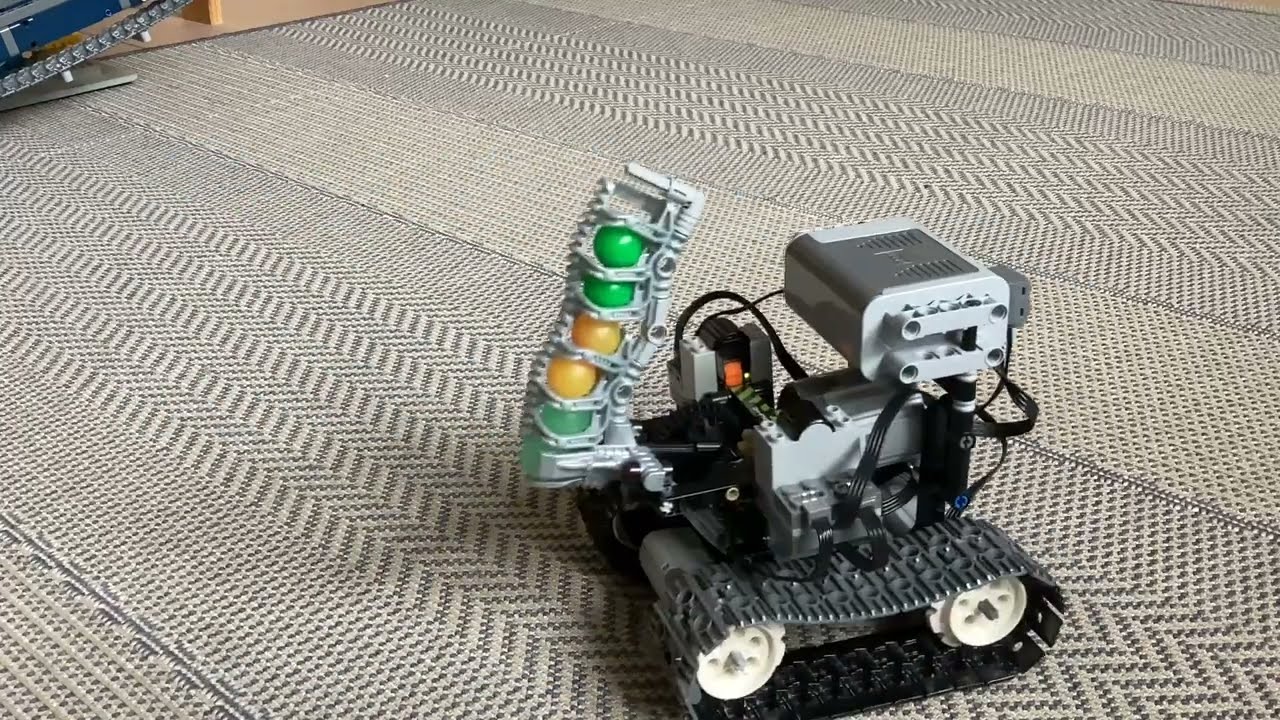

Since static pictures don’t really do this thing justice, you can see it in action here!

13 Likes
2

Now this is so cool. Love the tank you made.

5 Likes
3

Thought I recognized it.

I like that the cannon is also adjustable, it means you can hit the eyes of onlookers regardless of size. Excellent work!

5 Likes
4

Dual colour treads are an interesting choice.

1 Like
